TCL 7101

TCL 7101

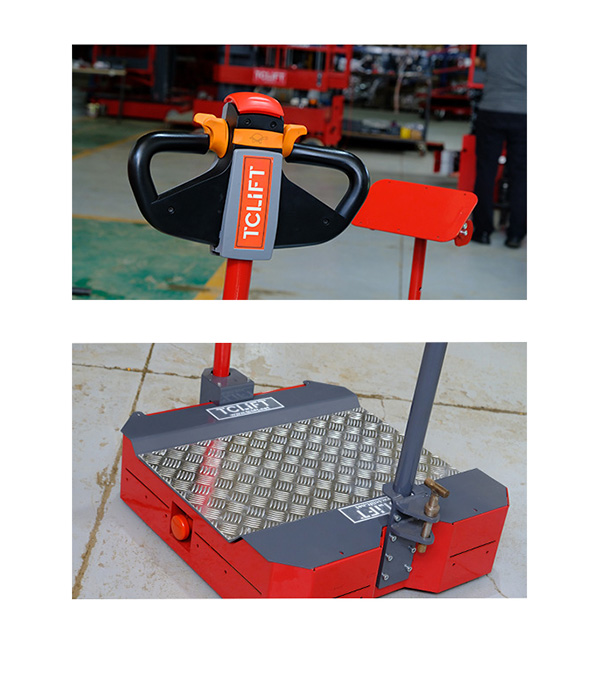

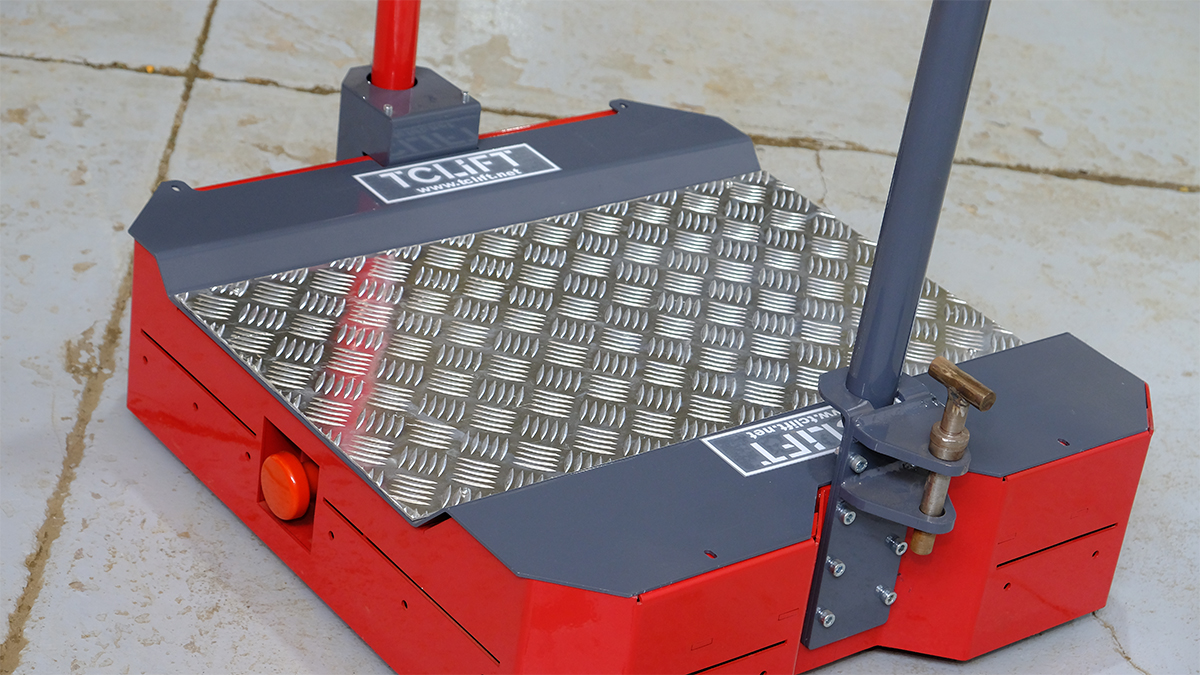

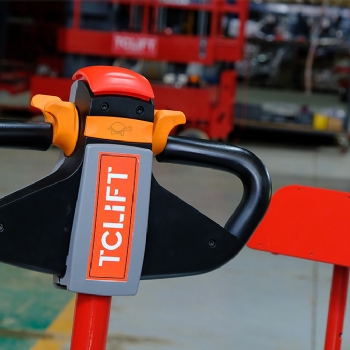

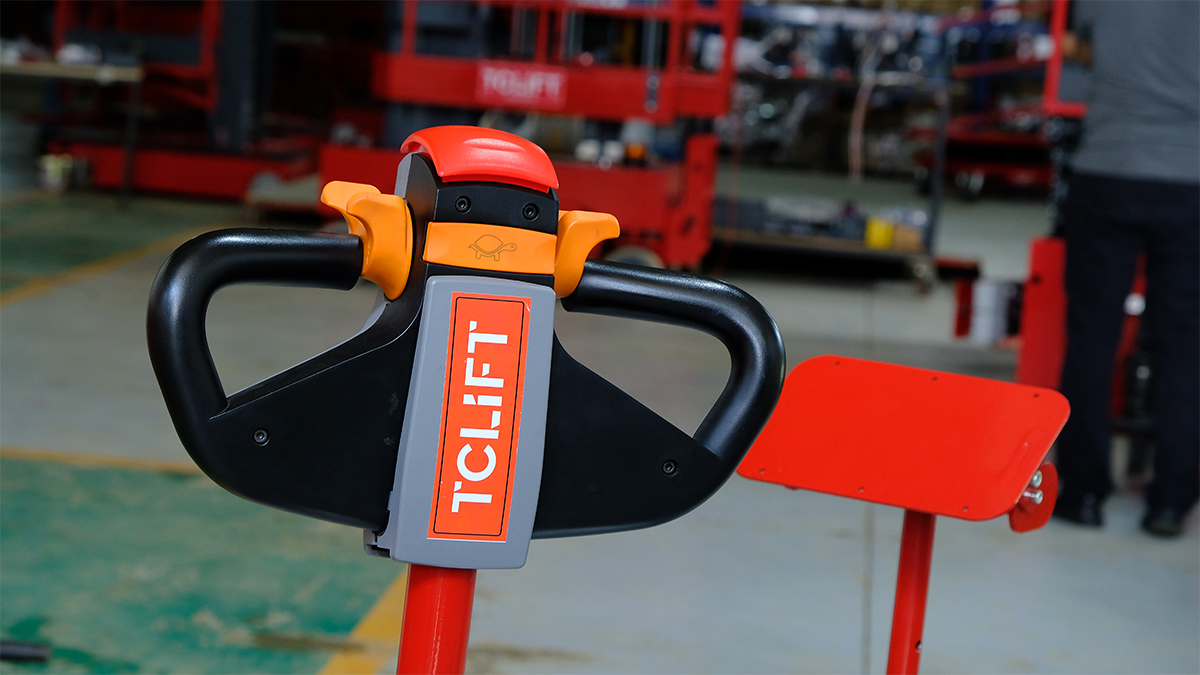

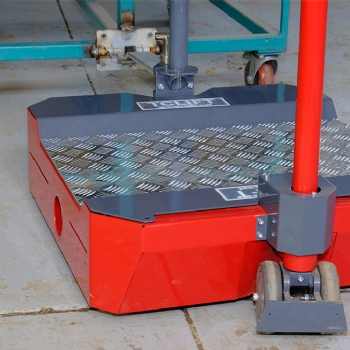

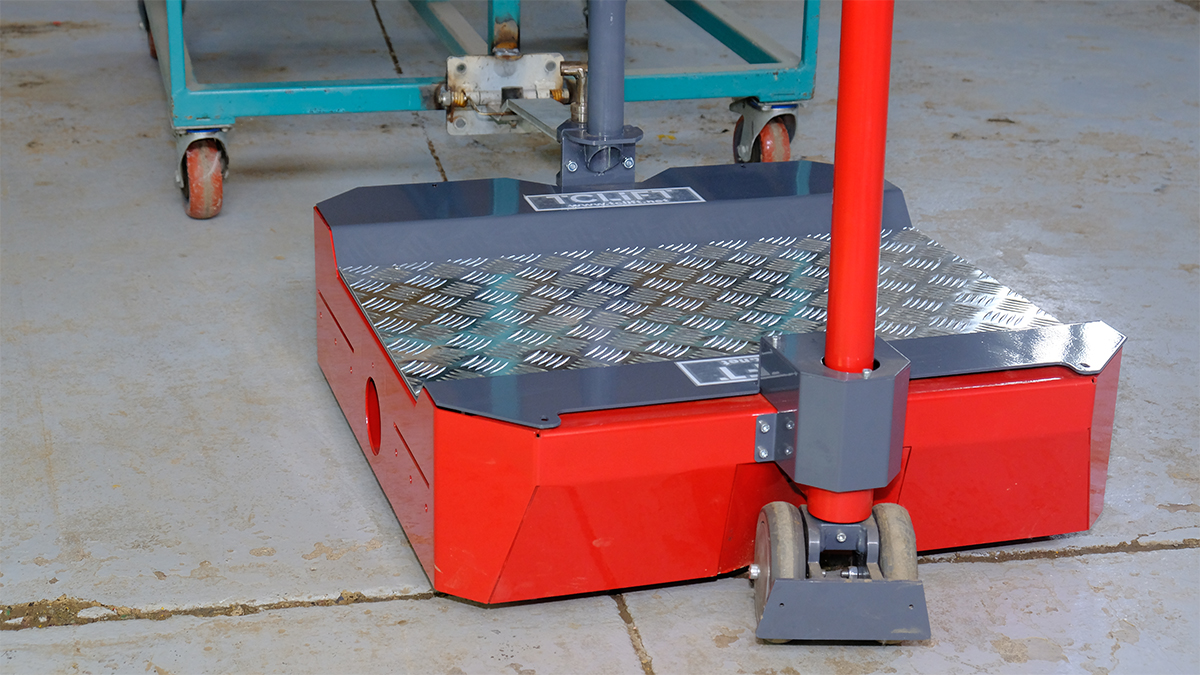

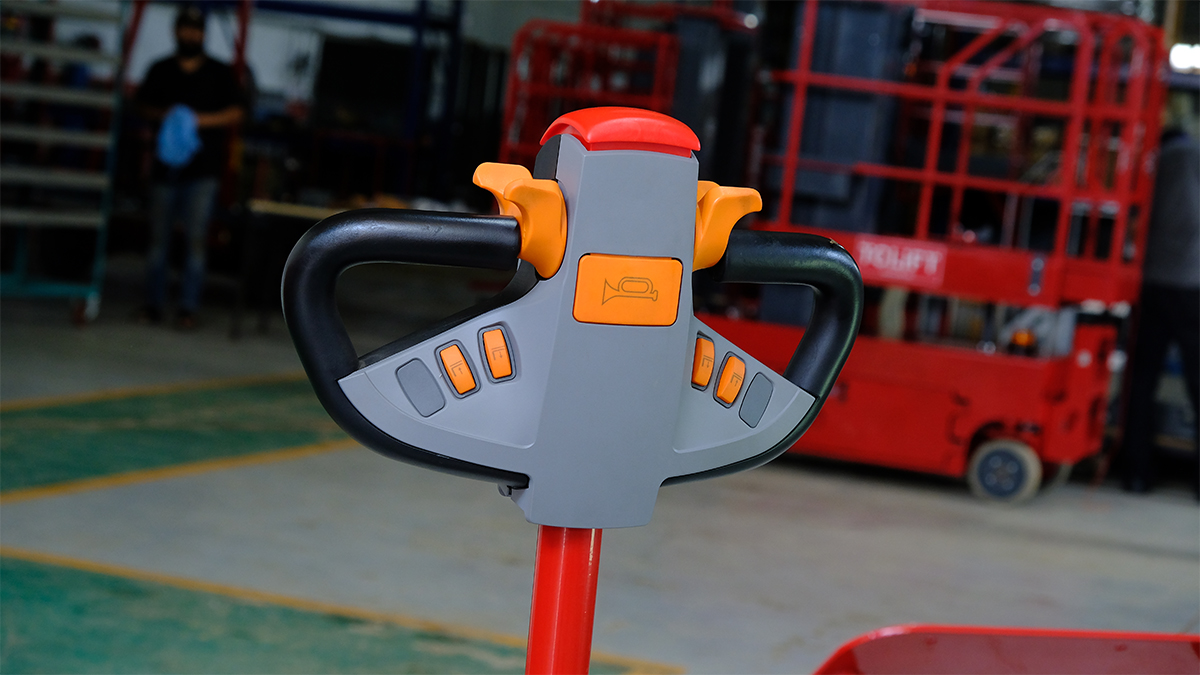

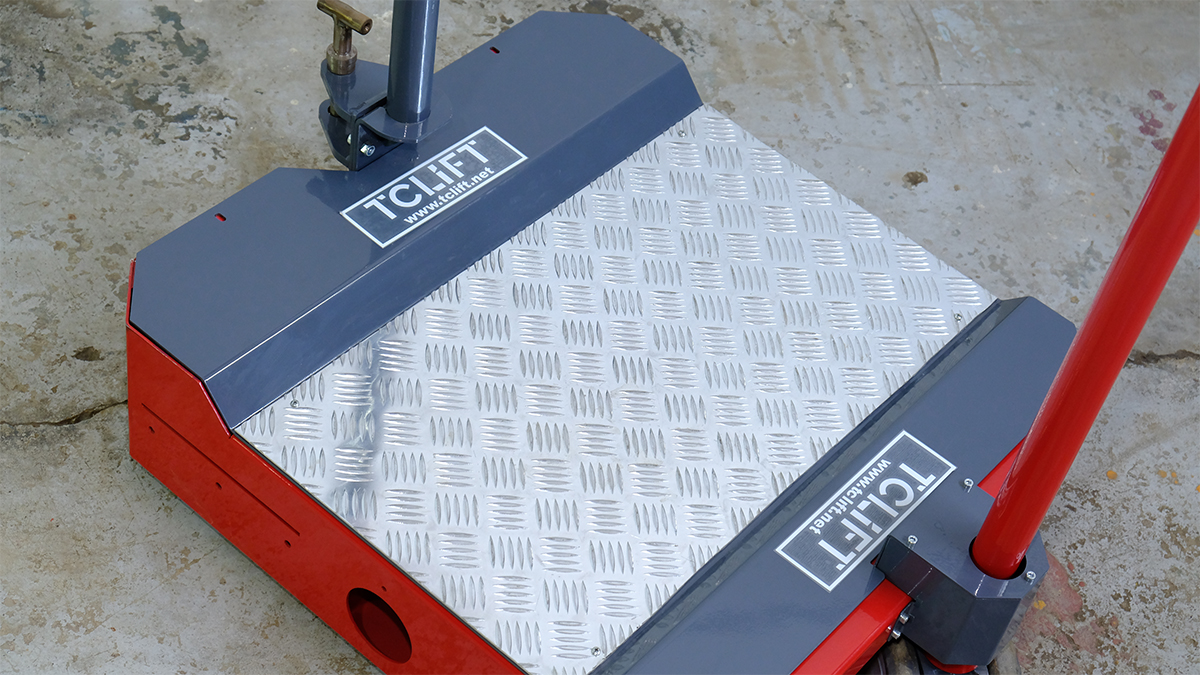

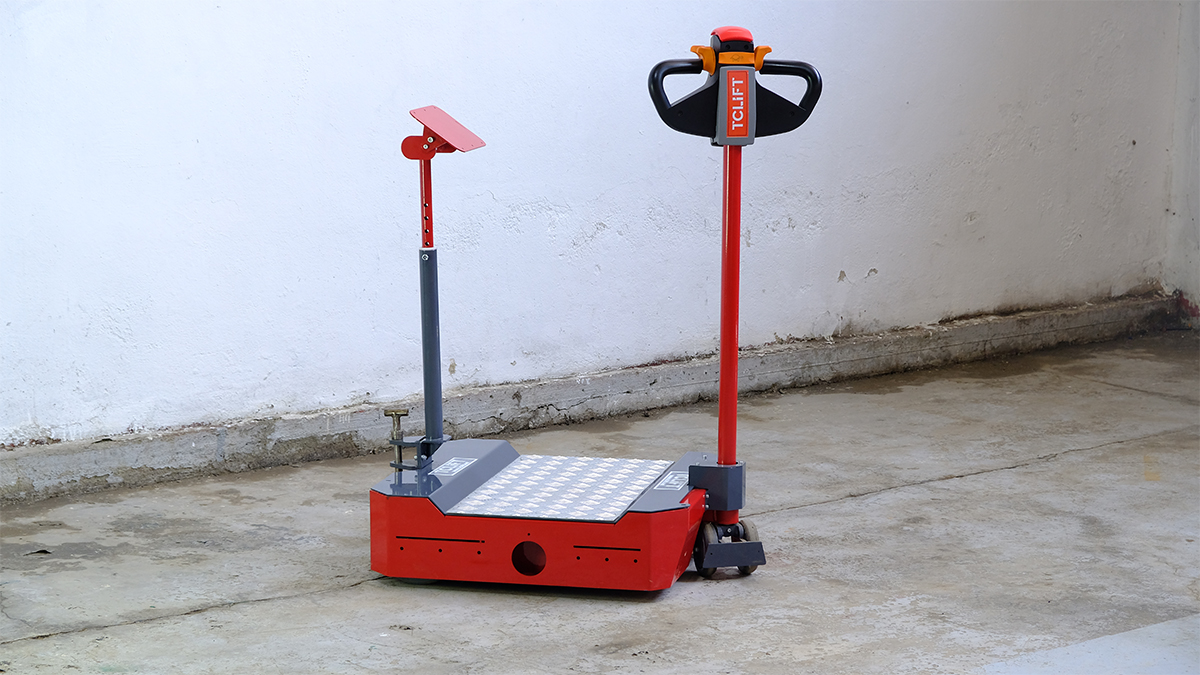

Mini Tow Truck

TCL 7101

MINI TOW TRUCK



SPECIFICATIONS
Basket Dimensions 100cmx200cm
Main Body lmpression 76cmx65cm
Safe Working Load  1000Kg.
Max.PowerExpended 250N
Working lnclination  0'
Max Wind Force 0mph
Max. Wheel Load  500 Kg
Working Sound  80Dba
CLOSED DIMENSIONS
Lenght  76cm.
Width 65cm.
Height  120cm
Weight  80 kg.
BATTERY CHANGER SPECIFICATION
lnputVoltage  180-265V AC
Freguency  45-65 HZ
Output  24 V DC 7/8A
POWER SOURCE/DRIVE
Gear Box Motor 450W
Gear Ratio  1:50
Motor Brake  20Kgf-cm.
BATTERY SPECIFICATION
Battery Type  Dry Type
Battery Voltage 24 V
Battery Power 55 Ah
