WORKING HEIGHT 6m
FULL BATTERY SCISSORS LIFT
| SPECIFICATIONS | |
|---|---|
| Max. Working Height | 6m |
| Max.Platform Height | 4m |
| Basket Dimensions | 70cmx155cm |
| Main Body lmpression | 70cmx155cm |
| Safe Working Load | 250Kg. |
| Max. PowerExpended | 250N |
| Working lnclination | 0' |
| Max Wind Force | 0mph |
| Max. Wheel Load | 550 Kg |
| Working Sound | 80Dba |
| CLOSED DIMENSIONS | |
|---|---|
| Lenght | 155cm. |
| Width | 71cm. |
| Height | 212cm |
| Weight | 1250 kg. |
| BATTERY CHANGER SPECIFICATION | |
|---|---|
| lnputVoltage | 180-265V AC |
| Freguency | 45-65 HZ |
| Output | 24 V DC 7/8A |
| POWER SOURCE/LIFTING | |
|---|---|
| Gear Box Motor | 800W /24v |
| Hydraulic Pump | 10cl.lx302 |
| Hydraulic Tank | 6 lt. |
| BATTERY SPECIFICATION | |
|---|---|
| Battery Type | Dry Type |
| Battery Voltage | 24 V |
| Battery Power | 200Ah |
| POWER SOURCE/DRIVE | |
|---|---|
| Gear Box Motor | 750W |
| Gear Ratio | 1:50 |
| Motor Brake | 20Kgf-cm |

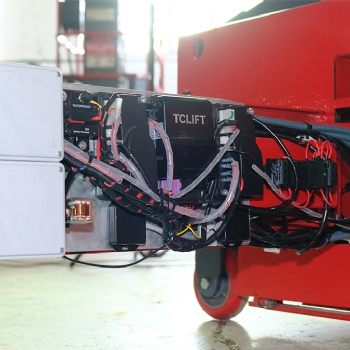

| CONTROLLER | |
|---|---|
| Controller Power | l00 Ah |
| Joystick Power | l00 Ah |
| Conroller Brand | TCLIFT |
