SAFE WORKING LOAD 750kg

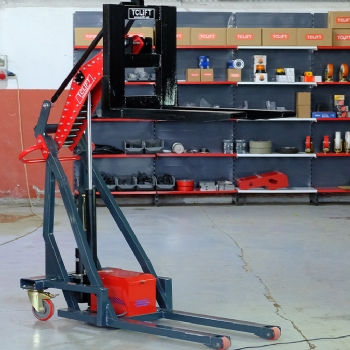

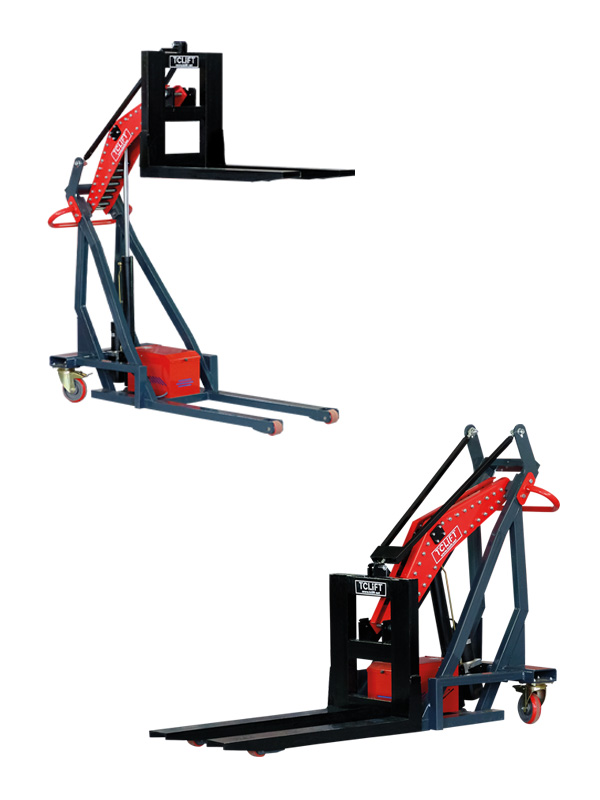

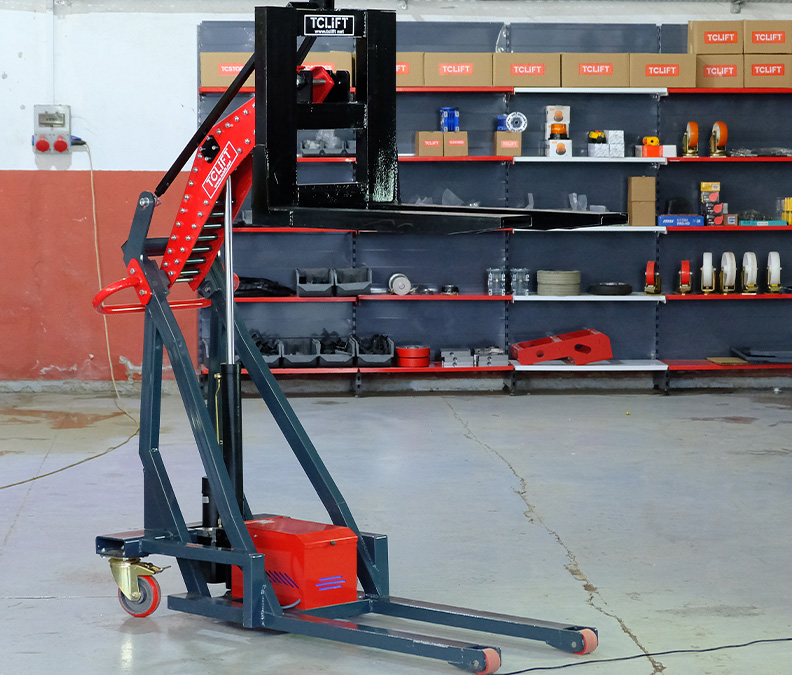

MANUAL DRIVE SEMI BATTERY STACKER
| SPECIFICATIONS | |
|---|---|
| Max. Working Height | 150cm |
| Max.Platform Height | 120cm |
| Total Weight | 235kg |
| Main Body lmpression | 175cmx75cm |
| Safe Working Load | 750Kg. |
| Max. PowerExpended | 48v24Ah |
| Working lnclination | 0' |
| Max Wind Force | 0mph |
| Max. Wheel Load | 350 Kg |
| Fork Dimension | 100cm |
| BATTERY CHANGER SPECIFICATION | |
|---|---|
| lnputVoltage | 180-265V AC |
| Freguency | 45-65 HZ |
| Output | 48 V DC 7/8A |
| POWER SOURCE/LIFTING | |
|---|---|

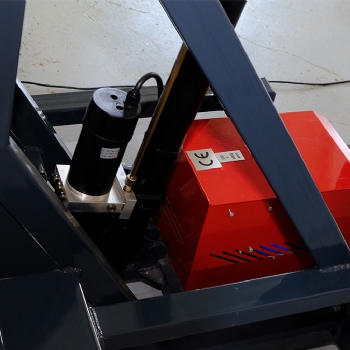

| Gear Box Motor | 48 V |
| Hydraulic Pump | 10cl.lx302 |
| Hydraulic Tank | 1 lt. |

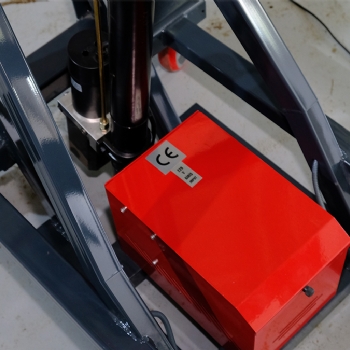

| BATTERY SPECIFICATION | |
|---|---|
| Battery Type | Lithium Battery |
| Battery Voltage | 48 V |
| Battery Power | 30 Ah |
